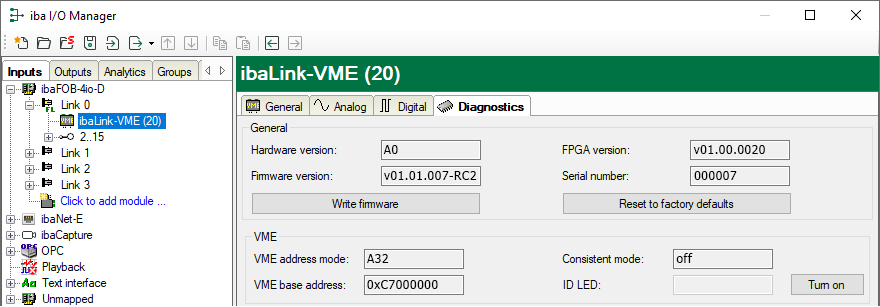

"General" area

The "General" area provides information about the version and serial number of the connected ibaLink-VME board.

• <Write firmware> Click here for a browser window where you can choose the new firmware. It takes several minutes for the firmware to load. After it is loaded, you will be prompted to reset ibaLink-VME, i.e., the rack in which the board is inserted.

• <Reset to default settings> The configuration data is deleted.

VME area

The "VME" area provides information about the card's selected addressing mode, the VME base address and whether or not consistency mode is enabled. The ID LED can also be controlled.
