Basic settings
For a description of the basic settings see Common and general module settings.
The input voltages and currents are to be entered in the General tab. Also the fundamental frequency given in Hz needs to be specified.
Time base
The time base of the module can be set to 1 / base frequency, as only one new value will be available in each period.
Voltages and currents
With regard to the electrical diagram, select the corresponding voltage and current signals from the selection list in the signal tree.
Fundamental DB first harmonic
If a certain base frequency has been specified, set the “Use dynamic base frequency” option to FALSE and enter the base frequency in the field below.

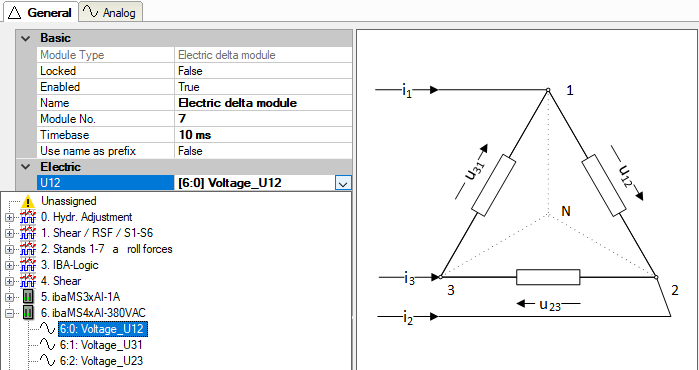

If the base frequency varies and the frequency value should be a separate signal, set the “Use dynamic base frequency” option to TRUE and select the appropriate frequency signal from the selection list in the field below. The following figure shows the assignment of the first voltage signal.
