In the Analog tab, you will find the predefined results, which will then be available in the signal tree for display and recording. The number and type of the results may vary, depending on the module type.
|

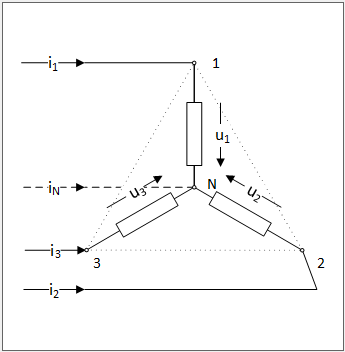

Star module |
Delta module |
|---|---|
 |
 |
|
effective voltage U1 effective voltage U2 effective voltage U3 effective current I1 effective current I2 effective current I3 effective current IN total effective voltage total effective current real power apparent power reactive power reactive power, signed power factor reactive power factor reactive power factor, signed |
effective voltage U12 effective voltage U31 effective voltage U23 effective current I1 effective current I2 effective current I3 total effective voltage total effective current real power apparent power reactive power reactive power, signed power factor reactive power factor reactive power factor, signed |
|
Single-phase module |

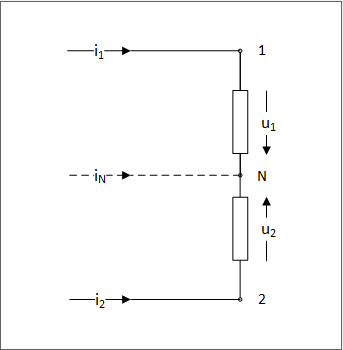

Two-phase module |
|---|---|
 |
 |
|
effective voltage U1 effective current I1 real power apparent power reactive power power factor signed reactive power reactive power factor signed reactive power factor |
effective voltage U1 effective voltage U2 effective current I1 effective current I2 effective current IN total effective voltage total effective current real power apparent power reactive power power factor signed reactive power reactive power factor signed reactive power factor |
