The signal tables (analog, digital) contain all the signals to be acquired by ibaPDA .

The properties of each signal are organized in different table columns.

You can customize the layout of the signal table according to your needs regarding:

• Column visibility

• Column order

• Column width

The custom settings are saved for each module type, i. e. user-specific settings for the signal tables of a module apply to all other modules of the same type.

Of course, the selection of the available columns depends on the module type.

In order to customize the table layout, follow these steps:

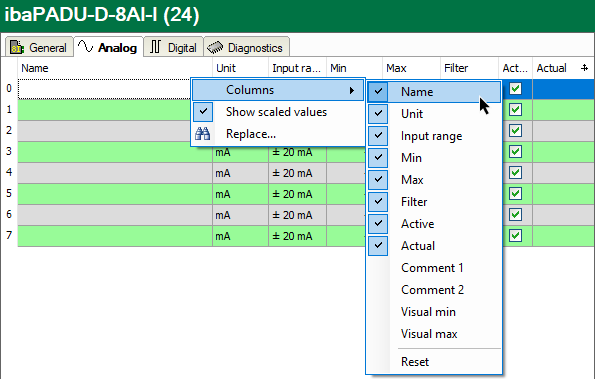

1. Right-click somewhere in the table header. The context menu appears. Follow the Columns submenu.









2. Click on the column name(s) you like to hide or show (toggle). "Reset" restores the default settings. To close, click outside the menu.

3. In order to change the order of the columns, click in the header of the column you like to move, drag it to the desired position and drop it there.

4. In order to change the column width, place the mouse cursor in the header on the column border to be shifted. In the correct position, the mouse cursor changes to a double arrow icon. Click and hold left mouse key and move the mouse to the right or left hand side. Let drop when the width is ok.
