When the desired profile is ready and available, you can select it in the general module settings for the computation module and then assign the signals to the placeholders.

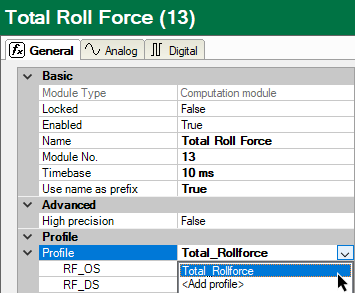

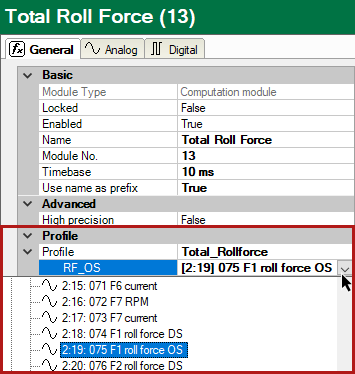

The following figures show how to select the profile (left) and assign input signals to the placeholders (right).

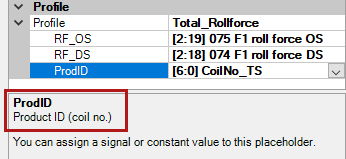

The comment from the placeholder definition is displayed here.

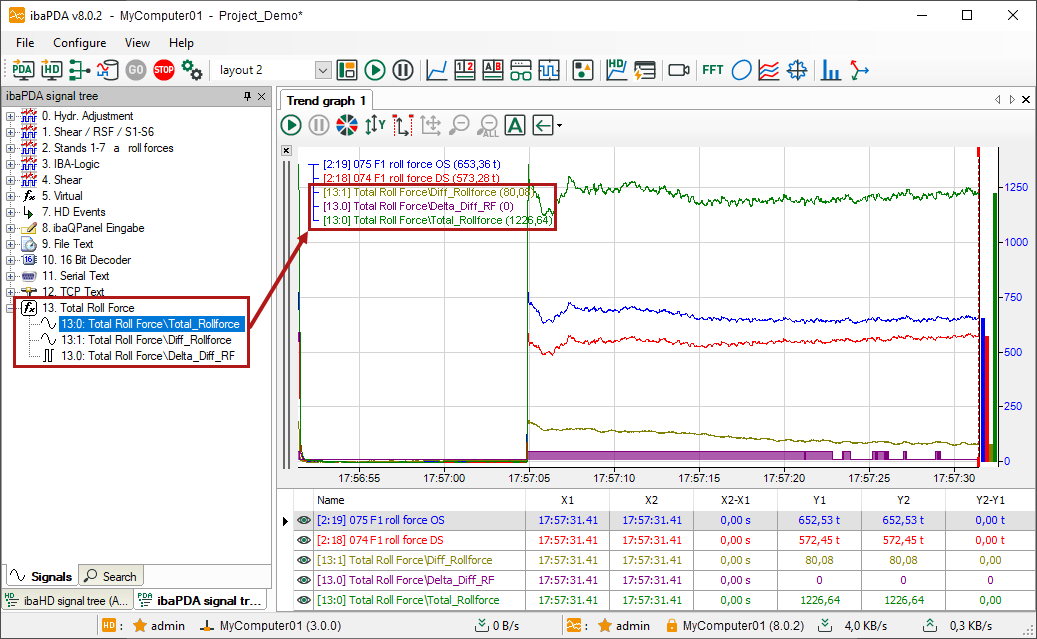

The completed computation module appears in the signal tree. You can use its signals like signals of other modules, e.g. in a trendgraph.

In this way, you can now add other computation modules that perform the same calculation by working with the same profile. In our example of a 7-stand rolling mill, you can now create one computation module per stand and thus project the calculations very efficiently.

If the calculations change or more calculation variables are added, only the profile needs to be changed and all instances of the computation module will be automatically updated. The signal assignments must only be completed in each module if additional placeholders are added.
