The 16-bit encoder module basically does exactly the opposite of the 16-bit decoder module.

Up to 16 digital signals are packed into a 16-bit integer analog signal.

You can configure 1 to 1000 analog signals per module.

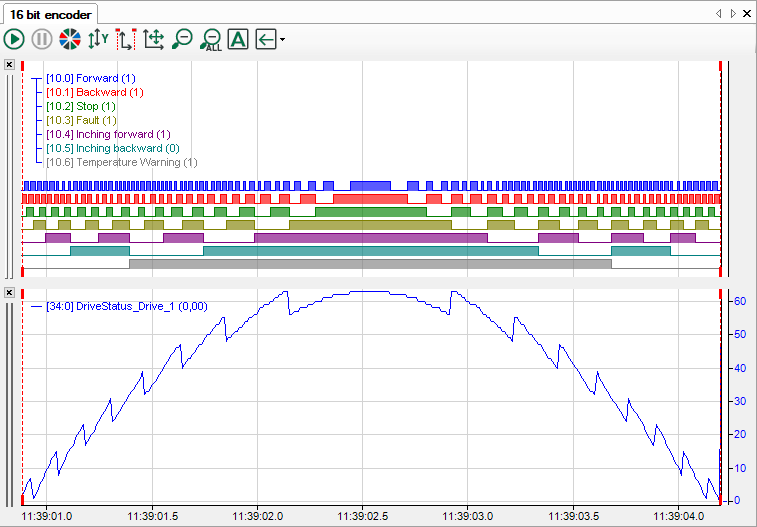

the following figure shows an example of 7 digital signals (top) that are packed into one analog signal (bottom).
