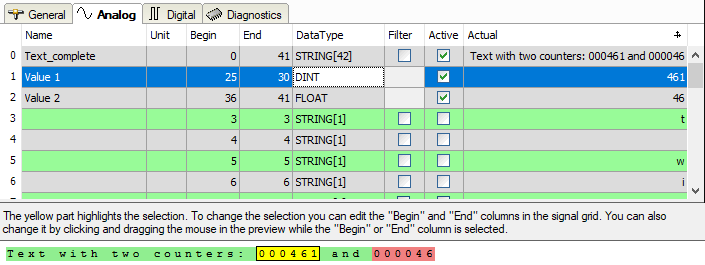

In the Analog tab, select the desired characters, parts or JSON values for the text signals, depending on the split mode. In the figure, the Fixed width split mode is selected.

You can freely assign the signal name. If numbers are to be numerically interpreted in the text, simply select a corresponding data type for the respective text signal.

In the Digital tab, there is only one signal that displays whether there is a connection to the text source.

Tip
	A good possibility to test the function of the TCP/IP text is using the TcpIpTest.exe and TextSend.exe help programs, which come along with the ibaPDA. This means that process computer presets can be simulated as part of a system test or commissioning even if the original systems are not yet available.
