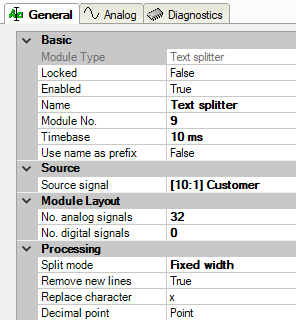

Basic settings

Module Type (information only)

Indicates the type of the current module.

Locked

You can lock a module to avoid unintentional or unauthorized changing of the module settings.

Enabled

Enable the module to record signals.

Name

You can enter a name for the module here.

Comment

You can enter a comment or description of the module here. This will be displayed as a tooltip in the signal tree.

Module No.

This internal reference number of the module determines the order of the modules in the signal tree of ibaPDA client and ibaAnalyzer.

Timebase

All signals of the module are sampled on this timebase.

Use module name as prefix

This option puts the module name in front of the signal names.
Source

Source signal

Enter the signal from the interface module here, with which the text was received.
Module structure

The number of analog signals is preset to 32, the number of digital signals to zero. If required, you can change the number. Permissible range: 1 to 1000.
Processing

Split mode

Select the suitable mode here that corresponds to the input text structure in order to always correctly read out the information contained:

  • Fixed width

  • Delimiter

  • JSON:

The different settings and their meaning are described in the following chapters.

Remove new lines

If you activate this option (true), then all line feeds (‘new lines”) will be removed when parsing the input text.

Replace characters

Enter a character here that is to replace all non-printable characters in the input text. Default: x.

Decimal point

Select the decimal separator here so that numerical values with decimal points in the text are correctly interpreted: Period or comma.
