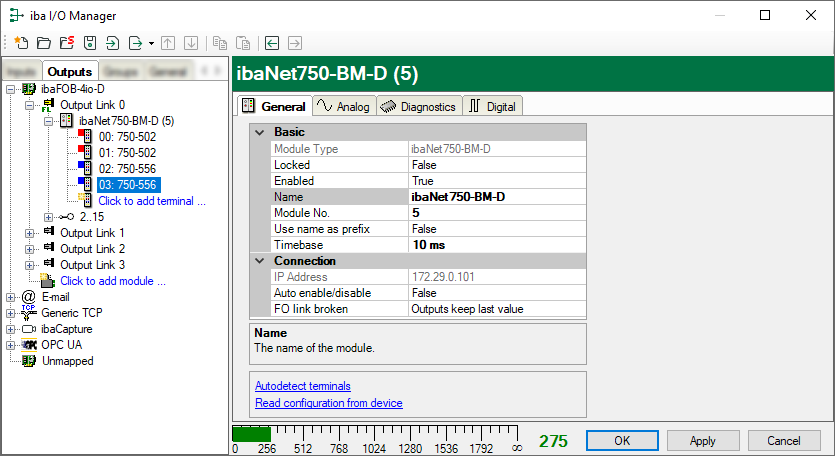

In the Outputs tab of the I/O Manager, you have the option to output digital and analog signals. These output signals are primarily intended to signal events, or to trigger alarms or alerts. Since ibaPDA offers a wide range of process signals, signals can also be compared, computed and issued to other systems.

Below you will find a list of the interfaces that can be used for digital and analog outputs and their corresponding output modules.

Table Interfaces with output function and corresponding output modules

Interface

Output modules

Comment

ibaFOB-io-S, -X, -D/-Dexp (incl. FOB-2io-, 4i+4o)

ibaFOB-io-ExpressCard

FOB Alarm

ibaNet750-BM

Only available when the card is inserted

FOB-link in 3 Mbit mode

ibaFOB-io-D/-Dexp (incl. FOB-2io-, 4i+4o)

ibaFOB-io-ExpressCard

ibaFOB-io-USB

ibaPADU-S-CM

ibaPADU-S-IT-2x16

ibaPADU-S-IT-16

HAICMON CMU

ibaCMU-S

iba PQU-S

ibaBM-DP

ibaBM-ENetIP

ibaBM-PN

ibaLink-io-embedded

ibaLink-VME

ibaNet750-BM/-BM-D

ibaFOBalarm

Only available when the card is inserted

FOB-Link in 32 Mbit Flex mode

FOB-link in 3 Mbit mode

ibaCom-L2B-x-8

L2B Integer I/O

L2B Real I/O

L2B S7 Real I/O

Only available when the card is inserted

ibaCapture

ibaCapture

Only available with ibaCapture license;

for recording control and PTZ cameras

ibaVision output

ibaVision V2 output

for the data supply of ibaVision

ibaNet-E

ibaW-750 + terminals ...

Standard, always available, but appropriate devices required

OPC (standard)

OPC output module

Standard, always available

OPC UA

OPC UA client

OPC UA server

Only available with license OPC UA client

E-mail

E-mail

Standard, always available up to 256 configurable e-mails

Generic TCP

Generic TCP Output

Only available with ibaPDA-Interface-Generic-TCP license; passive mode is supported.

Generic UDP

Generic UDP Output

Only available with ibaPDA-Interface-Generic-UDP license; passive mode is supported.

EtherNet/IP

EtherNet/IP I/O Scanner

EtherNet/IP I/O module

Only available with ibaPDA-Interface-S7-Xplorer license

Reflective memory

Reflective Memory Output

Only available with RM board and ibaPDA-Reflective Memory Access license

Modbus TCP Client

Modbus client

Only available with ibaPDA-Interface-Modbus over TCP-Client license

ABB-Xplorer

ABB Xplorer MMS

Only available with ibaPDA-Interface-ABB-Xplorer license

OMRON-Xplorer

OMRON FINS

Only available with ibaPDA-Interface-OMRON-Xplorer license

S7-Xplorer

S7-Xplorer

Only available with ibaPDA-Interface-S7-Xplorer license

TwinCAT-Xplorer

TwinCAT PLC

Only available with ibaPDA-Interface-TwinCAT-Xplorer license

MQTT

MQTT

Only available with ibaPDA-Interface-MQTT license

SQL database

SQL command

Only available with at least one of the following licenses:

ibaPDA-Interface-MySQL, -Oracle, -PostgreSQL, -SAP-HANA or -SQL-Server
