You can export the configuration of your groups to a text file.

So you can, e.g, efficiently edit and extend your group tree by using a suitable text editor or MS Excel. You can then import the edited file again.

The text file can also be used for documentation or transferred to other ibaPDA systems.

1. Click the export button in the I/O Manager toolbar and select the groups to export.









2. Use the browser to select the desired directory (drive and folder) in which to store the file, and specify a prefix for the file name. The .txt extension is added by ibaPDA automatically.

3. Click on <Save>.

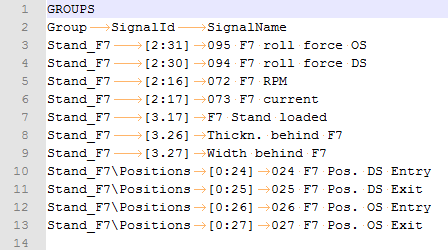

After two headers, the text file contains a line per signal with tab-delimited entries for the group name, signal ID and signal name.

Example

Configuration	Export
