The metric unit system is selected, when the unit table is enabled for the first time. After changing the unit system, the new unit system will be stored as active unit system in the registry.

There are different methods to change the unit system.

Switching in the View menu

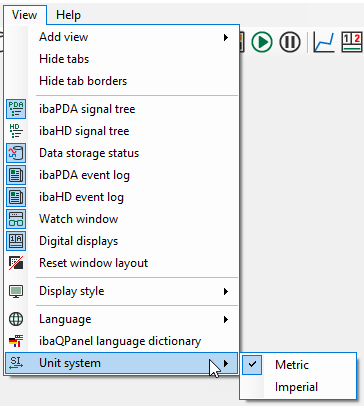

  1. In ibaPDA client go to menu View - Unit system and select the desired system.
Switching by button in ibaQPanel

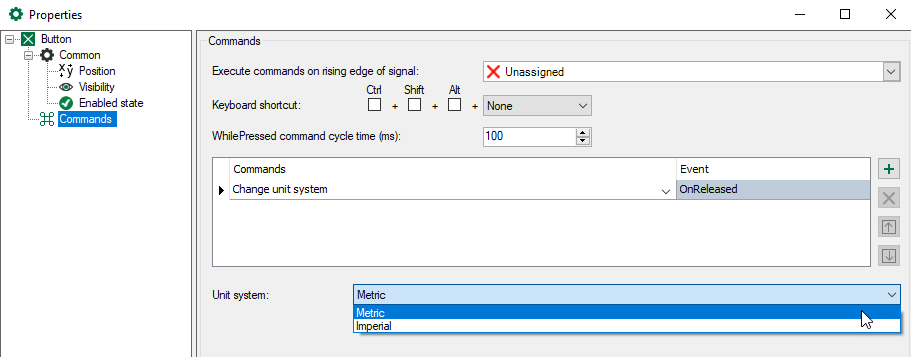

The button in ibaQPanel has a new command Change unit system.

In the settings of the command you can define the unit system to be activated when clicking the button.
