If the unit table has been enabled, it will be stored automatically in the data file.

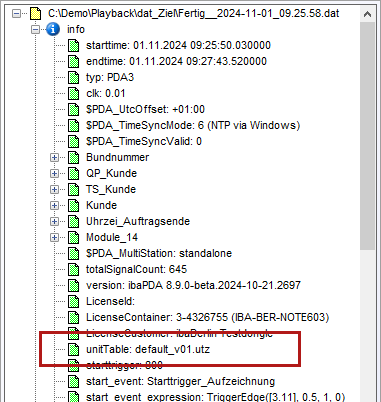

If a unit table is stored in the data file, then the info-field “unitTable” is available in the info-branch of the data file. The following picture shows the view in ibaAnalyzer.

If no unit table is embedded in the data file, the info-field is not available.

Next to the name of the info-field you’ll find the name of the unit table as it was configured in the I/O Manager. The filename extension of the unit table is *.utz, because it is stored as a compressed file in the data file.
