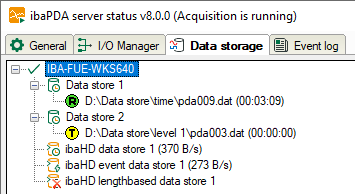

You will find the same information in the ibaPDA client program in the menu View – Data storage status.
Here, all configured data stores are displayed with their status, sorted by server name, data storage name and data file.
The colored symbols in the tree indicate the current status of the recording or the data file respectively.
|
Icon |
followed by ... |
Display in ... |
Description |
|---|---|---|---|
 |
Path and file name |
Data storage status |
Data recording is running |
 |
Path and file name |
Data storage status |
Waiting for (start) trigger; appears only if trigger is configured for data storage. Measured values are buffered in the RAM memory for the defined pre-trigger time and saved in the data file when the start trigger occurs. |
 |
Path and file name |
Data storage status |
Post-trigger phase; stop trigger occurred but acquisition continues until the post-trigger time is over. The symbol only appears if a stop trigger is configured for the data storage. |
 |
Server name |
Data storage status signal tree |
Acquisition stopped, no recording |
 |
Server name |
Data storage status signal tree |
Server not available (no connection), thus no signals available and no recording |
 |
behind a signal name |
Signal monitor / legend |
Signal not available, e.g. when acquisition stopped or server not available. |
