In the registers Analog and Digital you can define the output signals as for the virtual signals.
Tip |
|
|---|---|
 |
If you define the output data in a virtual module and only enter the references to these data, you can also include these data in the data recording. |

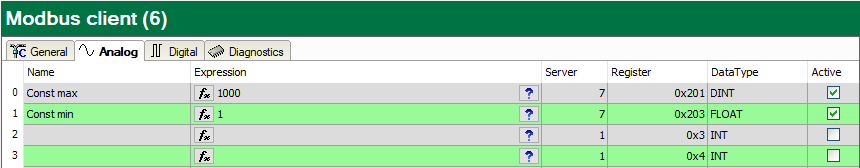

Analog and digital tab
Expression
In the Expression column, define the output signals in a similar way as the virtual signals. You can enter simple expressions or references to existing signals directly in the tables. You can also open the Expression editor via the button <fx>. You can analyze an incorrect expression via the button <?>.
Name, Server, Register, Data Type, Bit no., Active
The columns are identical for input and output modules, see Signal configuration
Other documentation |
|
|---|---|
 |
For a description of the columns, please see the ibaPDA manual. |
