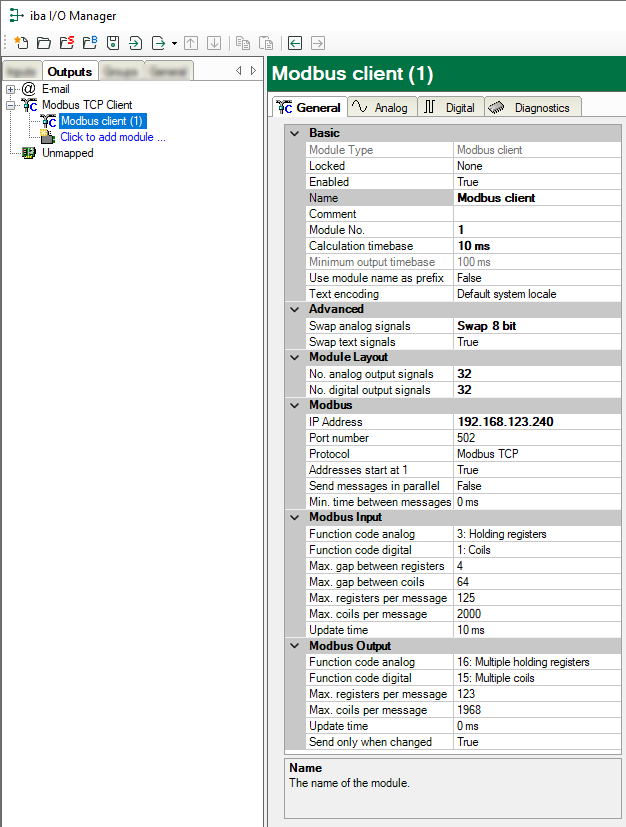

If you want to configure an output module, mark the module in the tree structure of the Outputs tab.
The parameters are almost identical to those of the input modules, see General module settings.
Consider the differences in the settings in contrast to the input modules:
Calculation timebase
Timebase (in ms) used for the calculation of the output values.
Technically, the calculation timebase is identical to the timebase of the input module. This means a change in the calculation timebase also changes the module timebase of the input side and vice versa!
The calculation timebase is not the same as the output timebase, with which the values are output!
Minimum output timebase
Timebase with which the outputs can be updated as quickly as possible.
The value is acquired automatically by the system based on the current I/O configuration and is only displayed here. The output timebase results from the smallest common multiple of all module timebases or is at least 50 ms.
