Video output modules can transmit images (videos) to ibaCapture, which can be recorded as virtual camera. Since all relevant video parameters have already been configured in ibaVision, only the Video output module that will be accessed must be selected.

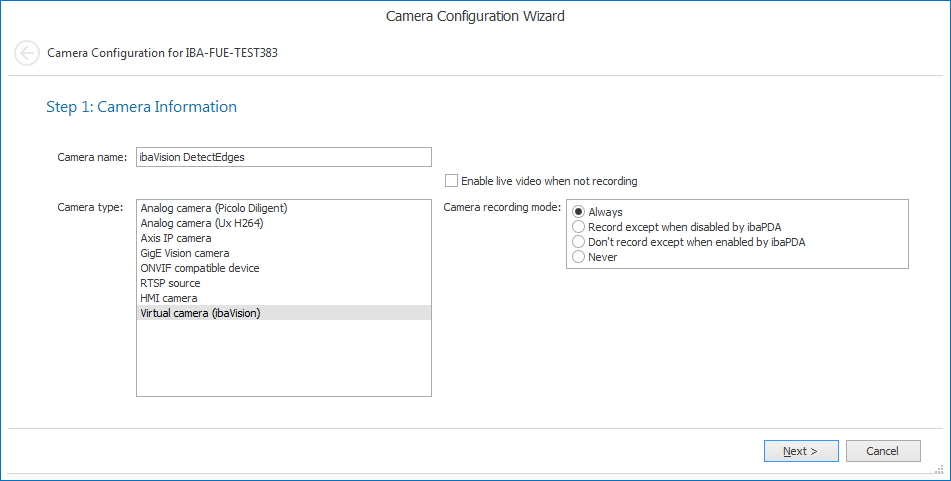

Open ibaCapture Manager and add a new camera. The camera configuration wizard starts. Select Virtual camera (ibaVision) as camera type and enter a camera name.

• Enable live video when not running

• Camera recording mode

  • Always (default): By default, video is always recorded, irrespective of whether a recording control was enabled in ibaPDA or not. Even if the recording control is enabled and camera recording is disabled in ibaPDA, ibaCapture will record videos.

  • Record except when disabled by ibaPDA: Video is recorded unless the recording control is enabled in ibaPDA and recording is disabled for the relevant camera (output signal = true).

  • Don't record except when enabled by ibaPDA: Video is not recorded unless the recording control is enabled in ibaPDA and recording is enabled for the relevant camera (output signal = true).

  • Never: No videos are recorded by ibaCapture, irrespective of whether a recording control was enabled in ibaPDA or not. Only a live image is provided. In this case the "storage settings" are deactivated, since no memory space is required.

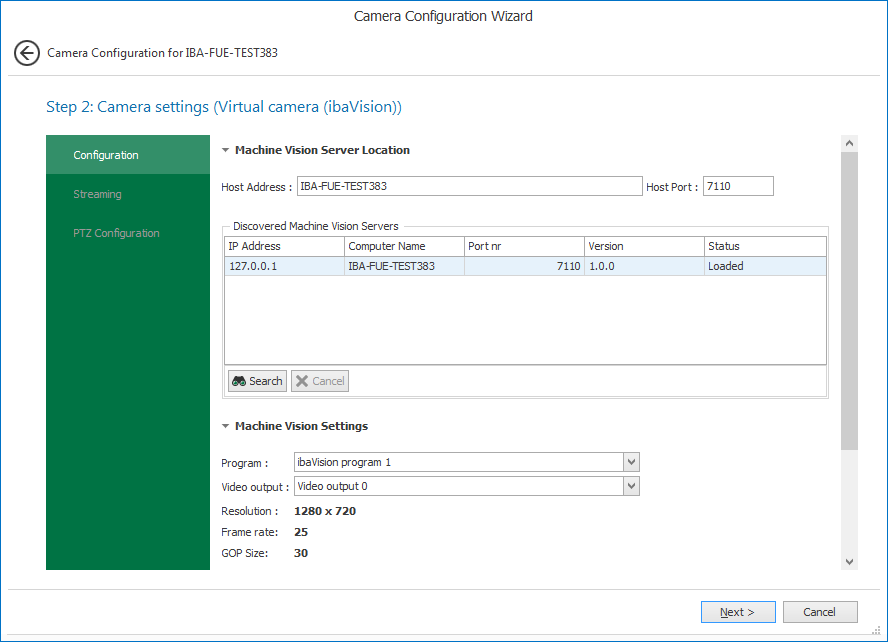

Specify the camera settings in step 2 of the camera configuration wizard.

Host Address

Hostname of the computer running ibaVision.

Port

Port for general communication as configured in the ibaVision status window, see chapter ibaVision Status Window.

Search

When clicking the button <Search>, the local network will be searched for all servers running ibaVision. The available servers are listed in the grid. ibaCapture Manager will search the local network for all ibaVision instances. The available Video output modules are listed in the grid below.

Program

All ibaVision programs available on the specified server are listed in the dropdown list. Select the desired ibaVision program from the list.

Video output

Select the desired Video output module from the dropdown list.

Resolution

Video resolution as configured in ibaVision.

Frame rate

Video frame rate in frames per second as configured in ibaVision.

GOP size

GOP size as configured in ibaVision.

Click on <Next> and complete the configuration.
